A BESS can be visible to SCADA and still be unreliable to operate. BESS integration with SCADA systems involves more than connecting communications: unclear responsibilities between the battery management system (BMS), power conversion system (PCS), energy management system (EMS) and site SCADA can lead to inconsistent data, conflicting commands and commissioning delays.
These risks are easier to manage when teams define each system’s role early. Confirm protocol support, command authority and cybersecurity requirements for the specific project, rather than assuming they are covered by a communications connection. This helps surface interface questions before testing.
This guide explains the system architecture and control hierarchy, how data and commands move between components, and which interface requirements to document. It also covers protocol compatibility, control boundaries, cybersecurity considerations and commissioning tests, including ownership and acceptance criteria. Aligning these elements gives project teams a practical basis for integration planning and clearer expectations for each party.
Key Takeaways
- Define which systems provide monitoring data, operating setpoints, alarms and protective actions before designing the interface.
- Reliable BESS integration with SCADA systems starts with clear control boundaries and project-specific checks of data needs and vendor-supported protocols.
- Compare interface options against existing infrastructure and required functions. Treat Modbus TCP, OPC UA and IEC 61850 as examples to validate, not assumed compatibility.
- Plan commissioning from requirements capture through interface testing and handover, with responsibilities and acceptance criteria agreed across project stakeholders.
- Foton Energy’s BESS, intelligent EMS and engineering consulting capabilities can support project teams as they define integration requirements and scope.
What BESS Integration with SCADA Systems Actually Involves
Project teams need battery operations to appear clearly in plant-level monitoring and, where authorised, respond to site or grid requirements. BESS integration with SCADA systems is the planned exchange of agreed operational data and, where the project permits, control commands between a battery energy storage system and supervisory controls. A communications connection alone does not establish who owns each command, whether a value is trustworthy or how the interface will be accepted.
Definition: BESS-SCADA integration enables supervisory systems to monitor agreed battery and plant information and, where authorised, transmit operating instructions. It does not transfer equipment-level protective functions to SCADA. Protection remains the responsibility of the relevant local equipment and protection architecture. The Supervisory control and data acquisition (SCADA) overview provides helpful context on how supervisory systems collect and present operational information.
What SCADA contributes to a battery energy storage project
SCADA can give operators a plant-level view of system status, alarms and agreed measurements, such as operating power or state-of-charge values when those points are included in the interface scope. It can also show whether commands have been issued and whether equipment reports the expected response. The precise role depends on the owner’s architecture and project requirements. One site may use SCADA primarily for monitoring, while another may authorise defined supervisory commands. Neither role should be assumed without agreement.
Keep the boundary clear. SCADA supports operator awareness and supervisory coordination; the BMS and PCS perform their specified equipment-level monitoring and protective functions. A supervisory command is not a substitute for local protection, and a displayed alarm does not prove that a protective action has been tested.
Which systems exchange information with SCADA?
A typical signal path may begin with the BMS reporting battery measurements and alarms to the plant control layer. The PCS reports conversion equipment status and operating measurements. An EMS may use those inputs to coordinate a charging or discharging target, while SCADA presents selected information to operators and may relay authorised setpoints through the agreed control path.
This is an example, not a universal architecture. Responsibilities vary with equipment design and project requirements. Confirm system boundaries, command authority, signal names, units, quality indicators and alarm meanings in project documents. Clear definitions help the integration team distinguish a displayed value from a command, and a reported alarm from a locally executed protective action.

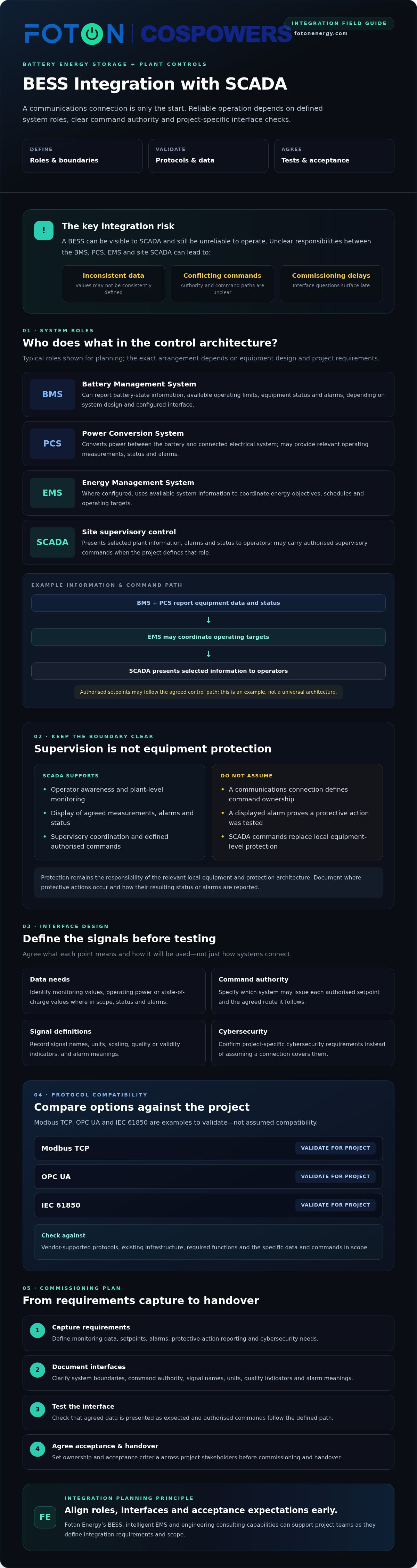

How BMS, PCS, EMS, and SCADA Share BESS Control
A reliable control architecture separates what each system observes, decides and commands. In a typical arrangement, the battery management system (BMS) and power conversion system (PCS) provide equipment-level information. The energy management system (EMS) coordinates operating objectives, while supervisory control and data acquisition (SCADA) gives operators a site-level view and may carry authorised commands. The exact arrangement depends on the project design.
BMS and PCS: equipment-level data and control
The BMS can report battery-state information, such as available operating limits, alongside equipment status and alarms, depending on the system design and configured interface. The PCS converts power between the battery and the connected electrical system. It may also provide operating measurements, status and alarm points relevant to its function.
During interface design, review which values are needed for operation and troubleshooting, how each is named and scaled, and whether it includes a quality or validity indication. Treat protective actions separately: document which equipment performs them locally and how resulting status or alarms are reported. Do not assume that a SCADA alarm or command replaces an equipment-level function.
EMS and SCADA: optimisation versus supervision
Where configured, the EMS manages energy objectives and schedules, using available system information to coordinate operating targets. SCADA is generally the supervisory interface through which operators view agreed data, alarms and system status. Depending on the project, it may also pass an authorised setpoint to the EMS or another designated controller. Define for each project whether commands flow from SCADA to EMS, whether the EMS reports status back to SCADA, or both.
For example, SCADA may send an approved charging target to the EMS, which coordinates the requested operation with the PCS within available operating limits. The BMS and PCS report relevant conditions, while alarms follow their specified reporting paths. This example is not a universal control scheme. Identify the command source, recipient, limits, response and fallback behaviour in project documents. For broader context on EMS capabilities, see Foton Energy’s AI-driven energy management systems.
Defined control boundaries prevent ambiguous commands by making each command’s source, destination, authority and expected response explicit. The IEEE 2030.2.1-2019 guide offers a reference for BESS design, operation and commissioning. Project teams should confirm how applicable guidance aligns with their requirements. Teams defining their system scope can also review Foton Energy’s BESS and engineering consulting, with specific interfaces confirmed against project needs.
BESS-SCADA Protocols and Interfaces: What Must Be Compared
Choosing a communications protocol is only one part of interface design. For BESS integration with SCADA systems, teams must also confirm required data, existing site infrastructure, command permissions and the selected equipment’s documented capabilities. Modbus TCP, OPC UA and IEC 61850 are examples to evaluate, not proof of compatibility. A shared protocol name does not guarantee matching registers, data models, scaling or command behaviour.
Start with the owner’s SCADA requirements and approved interface specifications. Then compare options against the information and functions the project actually needs. A microgrid designed to enhance energy security on military installations, for example, may have different operational priorities from a grid-connected site. The use case informs interface scope, while project specifications and vendor documentation confirm what can be supported.
| Use case | Validation question | Project dependency |
|---|---|---|
| Modbus TCP for an agreed set of measurements and commands | Are the required registers, data types, scaling and writable points documented? | Selected equipment, register maps and owner-approved network design |
| OPC UA for structured data exchange between specified systems | Do both endpoints support the required information model and security configuration? | Vendor implementation, interface specification and site architecture |
| IEC 61850 for a project-defined substation or plant interface | Are the required data models, services and command behaviours supported at both ends? | Owner requirements, equipment implementation and project configuration |
How to assess a BESS-SCADA communications protocol
Build the comparison from the owner’s approved requirements, existing network architecture and confirmed vendor documentation. Review the signal list with the BESS supplier, SCADA provider and responsible site stakeholders. For every point, define its name, meaning, unit, scaling, timestamp and quality indication. For commands, document permissions, valid operating range, acknowledgement and expected response. Until support is verified for the selected equipment, mark each proposed protocol as unconfirmed.
Data points, alarms, and cybersecurity boundaries
Prioritise points that support operation, response and troubleshooting: relevant power and battery-state measurements, equipment status, communication quality and actionable alarms. Collecting every available point can make operator displays harder to use without improving decisions. Agree alarm descriptions and priorities with the owner.
Include network segmentation, access control and secure remote access in the project cybersecurity review. Requirements depend on the owner’s policies, architecture and applicable jurisdiction, so do not assume there is one universal standard or configuration. Confirm controls with the responsible cybersecurity and network stakeholders before interface testing.
A Practical BESS-SCADA Integration and Commissioning Checklist
Reliable delivery starts before equipment is connected. For BESS integration with SCADA systems, agree on scope, ownership and acceptance criteria early, then use them to guide design, testing and handover. The sequence below gives project teams a practical framework. Specific requirements depend on the site and must be confirmed by the responsible parties.
Define integration scope before detailed design
- Capture requirements. The site operator and owner define operating modes, required visibility and intended use of commands. Identify system boundaries, data ownership, command authority and escalation responsibilities.
- Assign interface owners. The BESS supplier documents equipment interfaces and available signals. The SCADA provider defines how points appear and behave in the supervisory system. The EPC coordinates design interfaces and dependencies. The site operator confirms operational needs and acceptance expectations. Network stakeholders review connectivity and cybersecurity requirements.
- Approve interface documents. Bring the signal list, network requirements, command paths, naming conventions and change-control process under document control. Confirm protocol support and data definitions with the selected equipment providers rather than relying on protocol names alone.
- Verify project-specific requirements. Identify applicable grid-code, jurisdictional and site requirements for review by qualified project specialists. Record decisions, responsible owners and open items before detailed design proceeds. Where feasibility or engineering scope needs further review, explore BESS engineering consulting services.
Test, commission, and hand over the interface
Build a test plan that maps each check to an approved signal list, operating scenario and acceptance criterion. Define in advance who performs, witnesses and approves each test. The BESS supplier, SCADA provider, EPC, site operator and network stakeholders should agree on their responsibilities, including how deviations are recorded and resolved.
- Check points end to end. Verify selected status, measurements, units, scaling, timestamps and quality indications against the approved list.
- Verify alarms and commands. Confirm alarm descriptions and reporting, then test only authorised commands under agreed conditions. Record the expected response and actual result.
- Test communications loss. Follow the approved scenario for interruption and restoration. Document observed behaviour without assuming a universal fallback response.
- Complete handover. Archive results, approved deviations, final configurations and relevant interface documents. Provide operator training and confirm the site operator receives the agreed materials.
For an overview of how engineering scope and interface responsibilities can be considered for a project, see BESS engineering requirements with Foton Energy.
Building an Integrated BESS Solution with Foton Energy
Successful integration is a project-engineering effort, not an assumed plug-and-play connection. BESS integration with SCADA systems brings hardware, energy management, site controls and operating requirements into one defined scope. Foton Energy (Foton Pty Ltd) supplies commercial, industrial and utility-scale BESS, intelligent EMS and engineering consulting. Project teams still need to confirm interface responsibilities, supported communications and acceptance requirements for the selected equipment and site.
Align storage hardware, EMS, and site controls
Early collaboration helps teams consider how storage hardware, EMS objectives and site controls fit together, alongside project design, safety architecture and thermal management. Foton Energy (Foton Pty Ltd) delivers advanced energy storage solutions backed by extensive manufacturing heritage and rigorous quality standards. This background informs the storage solution context, but it does not establish a particular SCADA protocol, certification or integration outcome. Verify those details against project specifications and vendor documentation.
For a wider view of commercial and industrial storage considerations, see the commercial and industrial BESS strategic guide. Use that broader context alongside site-specific requirements, not as a substitute for interface engineering.
Prepare the next steps for your BESS project
Before a technical discussion, gather the information that will help project partners define a workable scope:
- Existing SCADA infrastructure: Document the site architecture, approved interface requirements and relevant network constraints.
- Operating objectives: Identify intended operating modes, the data operators need and any commands the project may authorise.
- Interface requirements: Compile available signal lists, naming conventions, protocol requirements and known dependencies.
Foton Energy’s (Foton Pty Ltd) BESS, intelligent EMS and engineering consulting capabilities can be considered as part of this project planning. Its engineering services include project feasibility and design, with technical support for commissioning. Confirm the specific SCADA integration scope, supported interfaces and commissioning responsibilities for each project. A focused technical discussion can help clarify responsibilities, open questions and the evidence needed for acceptance.
Review BESS integration requirements with Foton Energy (Foton Pty Ltd).
Set Your BESS Integration Up for Reliable Operation
Strong BESS integration with SCADA systems starts with clear control boundaries, verified interfaces and a commissioning plan tied to agreed acceptance criteria. Define which systems provide data, where authorised commands originate and how each signal will be tested. These decisions give project teams a shared basis for design, integration and handover.
Foton Energy supplies BESS, intelligent EMS and engineering consulting to support commercial, industrial and utility-scale projects. It is the exclusive global strategic partner of Cospowers, a Tier-1 energy storage manufacturer with over 30 years of manufacturing heritage. Foton Energy also has a global marketing network spanning over 70 countries. Confirm specific SCADA interfaces, protocol support and project responsibilities against each project’s requirements.
Bring your existing SCADA information, operating objectives and interface questions into the planning conversation. Discuss your BESS integration requirements with Foton Energy to explore the relevant engineering scope and next steps. Clear requirements and collaborative planning give the team a shared basis for moving forward.
Frequently Asked Questions
What is BESS integration with a SCADA system?
BESS integration with SCADA systems is the planned exchange of agreed operational data and, where authorised, control commands between a battery energy storage system and supervisory controls. It gives operators visibility of selected battery and plant information and may support defined operating instructions. Integration does not by itself establish command authority, data quality or acceptance. Document and test those responsibilities, along with local equipment protection boundaries, for the project.
How does a BESS communicate with SCADA?
A BESS communicates with SCADA through the interfaces and network architecture selected for the project. Battery and conversion equipment may report status, measurements and alarms through a BMS, PCS, EMS or gateway, depending on system design. If authorised, operating setpoints can travel along an agreed command path. Verify supported interfaces and define point names, units, scaling, timestamps, quality indicators and permissions rather than assuming every system exchanges data in the same way.
What is the difference between BMS, EMS, and SCADA?
The BMS monitors battery condition and reports relevant status, while the EMS coordinates energy objectives or operating schedules where configured. SCADA provides a supervisory view of selected site information for operators and may relay authorised commands. The PCS handles power conversion and can supply its own status and measurements. Because roles can vary by architecture, project documents should identify system boundaries, command paths and which equipment retains local protective functions.
Can a BESS integrate with an existing SCADA system?
Compatibility is possible, but it must be verified for the selected BESS, EMS and existing SCADA environment. Compare the owner’s interface requirements with documented vendor support, available data points, command needs and network constraints. Confirm that signal definitions and expected behaviour align, and identify any required interface changes or gateway functions. Treat the integration as project-specific, not plug-and-play, and agree on testing responsibilities and acceptance criteria before detailed design.
Which protocols are used for BESS-SCADA integration?
Modbus TCP, OPC UA and IEC 61850 are examples that project teams may evaluate, but no protocol should be assumed compatible without confirmation. A shared protocol name does not guarantee matching registers, data models, units, scaling or command behaviour. Check the owner’s specifications and verify support with the selected equipment providers. The right interface depends on required functions, existing infrastructure, project configuration and applicable requirements.
What data should a BESS send to SCADA?
A BESS should send the operational information needed for site monitoring and agreed control, not every available point by default. Depending on the equipment and project scope, this may include power measurements, battery state, equipment availability, operating status, alarms and command response. Define each point’s name, unit, scaling, timestamp and quality indication. The owner and integrators should prioritise data that supports operational decisions, troubleshooting and agreed reporting needs.
How is BESS-SCADA integration tested during commissioning?
Commissioning tests verify the interface against the approved signal list, operating scenarios and acceptance criteria. Teams can perform point-to-point checks, confirm measurements and alarm reporting, test authorised commands, and assess agreed loss-of-communications scenarios. Record expected and actual responses, test evidence, approved deviations and unresolved issues. Assign test and witness responsibilities in advance, then include final configurations, relevant documents and operator handover in the acceptance process.
